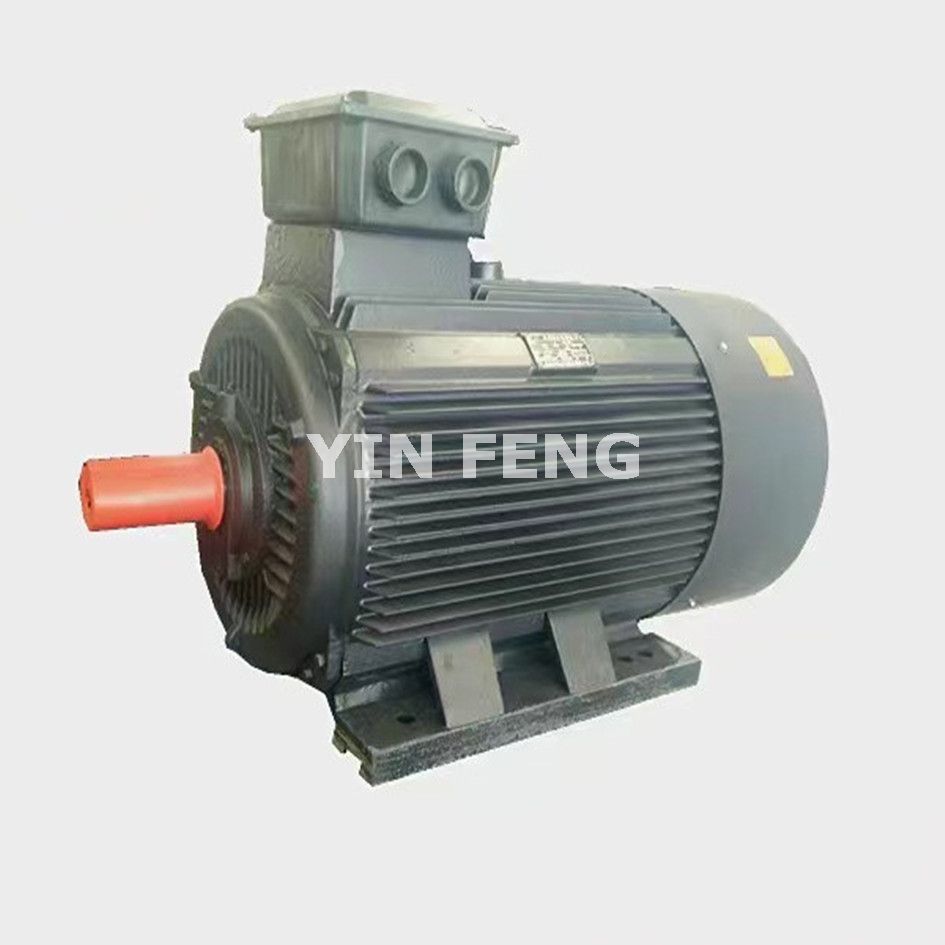

YX3 series three-phase asynchronous motors

YX3 series three-phase asynchronous motors

YX3 series three-phase asynchronous motors comply with the three-level energy efficiency standards specified in GB18613-2012<<<Minimum Allowable Values and Energy Efficiency Levels of Medium and Small Three-phase Asynchronous Motors>.

Its efficiency improvement design conforms to the national requirements for energy conservation and consumption reduction in the production and manufacturing industry.

The installation dimension of YX3 series motor conforms to IEC60034 standard. It has the advantages of reasonable structure, beautiful appearance, high efficiency, low noise, high protection level, high insulation level, etc. It can be widely used to drive various general mechanical equipment such as fans, pumps, machine tools, compressors, transportation machinery, etc., and can also be used in other places with relatively bad environment such as petrochemical industry, steel, mining, etc.

Запросить сейчас Далее

Информация о продукте

Type	Rated power	Horsepower	Current	Speed	Efficiency	Power factor	Rated torque	Starting torque	Max torque	Starting current	Noise	Reference weight
Type	KW	r/min	380VA	IST/IFT	%	COSΦ	Nm	TST/TFL	TM/TFL	kgm²	dB(A)	kg
2pole-3000rpm synchronous speed
YX3-801-2	0.75	2840	1.8	6.8	77.4	0.83	2.5	2.3	2.4	0.0008	62	18
YX3-802-2	1.1	2840	2.5	7.3	79.6	0.83	3.7	2.3	2.6	0.0009	62	20
YX3-90S-2	1.5	2850	3.3	7.6	81.3	0.84	5	2.5	2.8	0.0012	67	26
YX3-90L-2	2.2	2850	4.7	7.5	83.2	0.85	7.4	2.4	2.7	0.0014	67	30
YX3-100L-2	3	2880	6.2	7.5	84.6	0.87	9.9	2.4	2.6	0.0040	74	37
YX3-112M-2	4	2880	8.0	7.5	85.8	0.88	13.3	2.3	2.4	0.0057	77	47
YX3-132S1-2	5.5	2880	10.9	7.6	87.0	0.88	18.2	2.2	2.7	0.0112	79	65
YX3-132S2-2	7.5	2900	14.5	7.2	88.1	0.89	24.7	2.3	2.3	0.0134	79	73
YX3-160M1-2	11	2910	21.0	7.3	89.4	0.89	36.1	2.2	2.3	0.0391	81	122
YX3-160M2-2	15	2930	28.4	7.5	90.3	0.89	48.9	2.2	2.3	0.0464	81	133
YX3-160L-2	18.5	2930	34.7	7.6	90.9	0.89	60.3	2.4	2.7	0.0567	81	152
YX3-180M-2	22	2930	41.1	7.7	91.3	0.89	71.7	2.2	2.3	0.0783	83	192
YX3-200L1-2	30	2930	55.7	7.0	92.0	0.89	97.8	2.4	2.6	0.1277	84	252
YX3-200L2-2	37	2950	68.3	7.0	92.5	0.89	119.8	2.2	2.3	0.1432	84	275
YX3-225M-2	45	2970	82.7	7.1	92.9	0.89	144.7	2.2	2.3	0.2400	86	315
YX3-250M-2	55	2970	100.7	7.1	93.2	0.89	176.9	2.2	2.3	0.3214	89	417
YX3-280S-2	75	2970	136.5	6.5	93.8	0.89	241.2	2.0	2.3	0.5964	91	571
YX3-280M-2	90	2970	163.3	6.8	94.1	0.89	289.4	2.1	2.4	0.6953	91	607
YX3-315S-2	110	2980	196.9	7.0	94.3	0.90	352.5	2.0	2.4	1.2154	92	965
YX3-315M-2	132	2980	235.6	7.0	94.6	0.90	423.0	2.2	2.6	1.5965	92	1067
YX3-315L1-2	160	2980	281.8	7.0	94.8	0.91	512.8	2.1	2.4	1.8128	92	1151
YX3-315L2-2	185	2980	325.8	7.0	94.8	0.91	592.8	2.1	2.4	1.9350	92	1185
YX3-315L3-2	200	2980	351.5	7.1	95.0	0.91	620.9	2.3	2.7	2.0806	92	1253
YX3-355M1-2	220	2980	386.7	7.1	95.0	0.91	750.0	2.3	2.7	3.1860	100	1350
YX3-355M2-2	250	2980	439.4	7.1	95.0	0.91	801.2	2.0	2.2	3.6668	100	1638
YX3-355L1-2	280	2980	492.1	7.1	95.0	0.91	897.3	2.0	2.2	3.9450	100	1750
YX3-355L2-2	315	2980	553.6	7.1	95.0	0.91	1009.5	2.0	2.2	4.2230	100	1834

Type	Rated power	Horsepower	Current	Speed	Efficiency	Power factor	Rated torque	Starting torque	Max torque	Starting current	Noise	Reference weight
Type	KW	r/min	380VA	IST/IFT	%	COSΦ	Nm	TST/TFL	TM/TFL	kgm²	dB(A)	kg
4pole-1500rpm synchronous speed
YX3-801-4	0.55	1390	1.6	5.2	71	0.75	3.78	2.4	2.3	0.75	58	15
YX3-802-4	0.75	1390	1.9	6.5	79.6	0.75	5.2	2.3	2.6	0.0026	56	20
YX3-90S-4	1.1	1405	2.7	6.6	81.4	0.75	7.5	2.5	2.5	0.0026	59	26
YX3-90L-4	1.5	1405	3.7	6.9	82.8	0.75	10.2	2.4	2.7	0.0031	59	29
YX3-100L1-4	2.2	1425	4.9	7.5	84.3	0.81	14.7	2.4	2.6	0.0073	64	37
YX3-100L2-4	3	1425	6.5	7.6	85.5	0.82	20.1	2.4	2.7	0.0073	64	40
YX3-112M-4	4	1440	8.6	7.7	86.6	0.82	26.5	2.3	2.7	0.009	65	52
YX3-132S-4	5.5	1440	11.6	7.5	87.7	0.82	36.5	2.2	2.4	0.0223	71	70
YX3-132M-4	7.5	1445	15.5	7.4	88.7	0.83	49.6	2.3	2.5	0.0308	71	84
YX3-160M-4	11	1460	21.9	7.5	89.8	0.85	72.0	2.2	2.6	0.078	73	135
YX3-160L-4	15	1460	29.3	7.5	90.6	0.86	98.1	2.2	2.4	0.0957	73	156
YX3-180M-4	18.5	1470	35.8	7.7	91.2	0.86	120.2	2.2	2.7	0.1446	76	196
YX3-180L-4	22	1475	42.4	7.8	91.6	0.86	142.4	2.4	2.5	0.1643	76	215
YX3-200L-4	30	1475	57.4	7.2	92.3	0.86	194.2	2.2	2.5	0.2725	76	275
YX3-225S-4	37	1480	70.5	7.3	92.7	0.86	238.8	2.2	2.6	0.4222	78	328
YX3-225M-4	45	1480	85.4	7.4	93.1	0.86	290.4	2.2	2.4	0.4878	78	355
YX3-250M-4	55	1480	103.9	7.4	93.5	0.86	354.9	2.2	2.7	0.6864	79	453
YX3-280S-4	75	1480	137.8	6.7	94.0	0.88	484	2.0	2.5	1.1648	80	596
YX3-280M-4	90	1480	165.0	6.9	94.2	0.88	580.7	2.1	2.5	1.5184	80	693
YX3-315S-4	110	1480	201.0	6.9	94.5	0.88	709.8	2.0	2.6	3.2344	88	1012
YX3-315M-4	132	1480	240.7	6.9	94.7	0.88	851.8	2.2	2.7	3.4216	88	1147
YX3-315L1-4	160	1480	287.8	6.9	94.9	0.89	1032.4	2.1	2.6	3.9416	88	1224
YX3-315L2-4	185	1480	332.8	6.9	94.9	0.89	1193.7	2.1	2.6	4.2530	88	1305
YX3-315L3-4	200	1485	359.0	6.9	95.1	0.89	1286.2	2.3	2.4	4.6696	88	1331
YX3-355M1-4	220	1490	390.5	6.9	95.1	0.89	1410.0	2.0	2.4	5.1230	95	1550
YX3-355M2-4	250	1490	443.8	6.9	95.1	0.89	1602.3	2.0	2.4	5.8968	95	1650
YX3-355L1-4	280	1490	497.0	6.9	95.1	0.89	1794.6	2.0	2.3	6.1568	95	1720
YX3-355L2-4	315	1490	559.2	6.9	95.1	0.89	2019.0	2.0	2.3	6.9264	95	1804

Type	Rated power	Horsepower	Current	Speed	Efficiency	Power factor	Rated torque	Starting torque	Max torque	Starting current	Noise	Reference weight
Type	KW	r/min	380VA	IST/IFT	%	COSΦ	Nm	TST/TFL	TM/TFL	kgm²	dB(A)	kg
6pole-1000rpm synchronous speed
YX3-90S-6	0.75	910	2.1	5.8	75.9	0.72	7.9	2.1	2.4	0.0032	57	24
YX3-90L-6	1.1	910	2.9	5.9	78.1	0.73	11.5	2.3	2.5	0.0042	57	28
YX3-100L-6	1.5	920	3.9	6.0	79.8	0.74	15.6	2.1	2.3	0.0074	61	34
YX3-112M-6	2.2	940	5.5	6.0	81.8	0.74	22.4	2.2	2.3	0.0147	65	45
YX3-132S-6	3	960	7.4	6.2	83.3	0.74	29.8	2.1	2.3	0.0305	69	60
YX3-132M1-6	4	960	9.7	6.8	84.6	0.74	39.8	2.0	2.2	0.0378	69	69
YX3-132M2-6	5.5	960	13.0	7.1	86.0	0.75	54.7	2.0	2.3	0.0473	69	82
YX3-160M-6	7.5	970	16.8	6.7	87.2	0.78	73.8	2.2	2.5	0.0924	73	116
YX3-160L-6	11	970	23.9	6.9	88.7	0.79	108.3	2.1	2.4	0.1218	73	143
YX3-180L-6	15	970	31.3	7.2	89.7	0.81	147.7	2.0	2.2	0.2174	73	181
YX3-200L1-6	18.5	970	38.4	7.2	90.4	0.81	182.1	2.2	2.4	0.3308	73	230
YX3-200L2-6	22	970	44.8	7.3	90.9	0.82	216.6	2.2	2.5	0.3780	73	239
YX3-225M-6	30	980	61.4	7.1	91.7	0.81	292.3	2.1	2.5	0.5744	74	301
YX3-250M-6	37	980	72.6	7.1	92.2	0.84	360.6	2.2	2.4	0.8757	76	387
YX3-280S-6	45	980	85.8	7.2	92.7	0.86	438.5	2.1	2.0	1.4700	78	501
YX3-280M-6	55	980	104.4	7.2	93.1	0.86	536.0	2.1	2.0	1.7325	78	547
YX3-315S-6	75	990	143.1	6.7	93.7	0.85	723.5	2.0	2.3	4.3155	83	976
YX3-315M-6	90	990	173.2	6.7	94.0	0.84	868.2	2.0	2.3	4.4940	83	1007
YX3-315L1-6	110	990	208.5	6.7	94.3	0.85	1061.1	2.0	2.3	5.7225	83	1097
YX3-315L2-6	132	990	246.5	6.7	94.6	0.86	1273.3	2.0	2.3	6.4260	83	1168
YX3-355M1-6	160	990	294.8	6.7	94.8	0.87	1543.4	2.0	2.2	9.2925	85	1554
YX3-355M2-6	185	990	340.8	6.7	94.8	0.87	1784.6	2.0	2.2	9.2500	85	1602
YX3-355M3-6	200	990	367.7	6.7	95.0	0.87	1929.3	2.0	2.2	10.0280	85	1768
YX3-355L1-6	220	990	404.4	6.7	95.0	0.87	2122.2	2.0	2.2	10.520	85	1800
YX3-355L2-6	250	990	459.6	6.7	95.0	0.87	2411.6	2.0	2.2	10.815	85	1902

Type	Rated power	Horsepower	Current	Speed	Efficiency	Power factor	Rated torque	Starting torque	Max torque	Starting current	Noise	Reference weight
Type	KW	hp	A	r/min	%	COSΦ	Nm	TST/TFL	TM/TFL	IST/IFT	dB(A)	kg
8pole-750rpm synchronous speed
YX3-801-8	0.18	0.25	0.9	690.0	51.0	0.61	2.49	1.8	1.9	3.3	52	22
YX3-802-8	0.25	0.34	1.2	690.0	54.0	0.61	3.46	1.8	1.9	3.3	52	24
YX3-90S-8	0.37	0.5	1.5	690.0	62.0	0.61	5.12	1.8	2.0	4.0	56	26
YX3-90L-8	0.55	0.75	2.2	690.0	63.0	0.61	7.61	1.8	2.0	4.0	56	28
YX3-100L1-8	0.75	1	2.4	700.0	71.0	0.67	10.23	1.8	2.0	4.0	59	30
YX3-100L2-8	1.1	1.5	3.3	700.0	73.0	0.69	15.00	1.8	2.0	5.0	59	32
YX3-112M-8	1.5	2	4.4	700.0	75.0	0.68	20.46	1.8	2.0	6.0	61	40
YX3-132S-8	2.2	3	6.0	710.0	78.0	0.71	29.59	1.8	2.0	6.0	64	64
YX3-132M-8	3	4	7.9	710.0	79.0	0.73	40.35	1.8	2.0	6.0	64	78
YX3-160M1-8	4	5.5	10.3	710.0	81.0	0.73	53.06	1.9	2.0	6.0	68	105
YX3-160M2-8	5.5	7.5	13.6	720.0	83.0	0.74	72.59	2.0	2.0	6.0	68	115
YX3-160L-8	7.5	10	17.8	720.0	85.5	0.75	99.50	2.0	2.0	6.0	68	145
YX3-180L-8	11	15	25.1	720.0	87.5	0.76	143.90	2.0	2.0	6.6	70	160
YX3-200L-8	15	20	34.1	730.0	88.0	0.76	196.23	2.0	2.0	6.6	73	228
YX3-225S-8	18.5	25	41.1	730.0	90.0	0.76	242.02	1.9	2.0	6.6	73	242
YX3-225M-8	22	30	47.5	730.0	90.5	0.78	287.47	1.9	2.0	6.6	73	256
YX3-250M-8	30	40	63.4	730.0	91.0	0.79	392.47	1.9	2.0	6.6	75	368
YX3-280S-8	37	50	77.8	730.0	91.5	0.79	484.04	1.9	2.0	6.6	76	472
YX3-280M-8	45	61	94.1	730.0	92.0	0.79	584.74	1.8	2.0	6.6	76	538
YX3-315S-8	55	75	111.2	740.0	92.8	0.81	709.80	1.8	2.0	6.6	82	900
YX3-315M-8	75	102	151.3	740.0	93.0	0.81	967.91	1.8	2.0	6.6	82	1000
YX3-315L1-8	90	122.5	177.8	740.0	93.8	0.82	1161.49	1.8	2.0	6.6	82	1055
YX3-315L2-8	110	150	216.8	740.0	94.0	0.82	1419.40	1.8	2.0	6.4	82	1118
YX3-355M1-8	132	180	261.0	740.0	93.7	0.82	1692.08	1.8	2.0	6.4	90	1560
YX3-355M2-8	160	218	314.7	740.0	94.2	0.82	2051.00	1.8	2.0	6.4	90	1580
YX3-355L1-8	200	272	393	740.0	94.8	0.82	2582	1.8	2.0	6.4	91	1985
YX3-355L2-8	220	299	425	740.0	94.8	0.83	2839	1.8	2.0	6.4	92	2050
