YZW Type Build-out Motorized Pulley (Motorized Drum/Drum Motor)

    YZW type build-out motorized pulley (motorized drum/drum motor) is a new-type driving device for supportive use of various fixed belt conveyors, bucket elevator and winch; the exposed dynamo is directly connected with roller with that merits of convenient maintenance and safe operation.

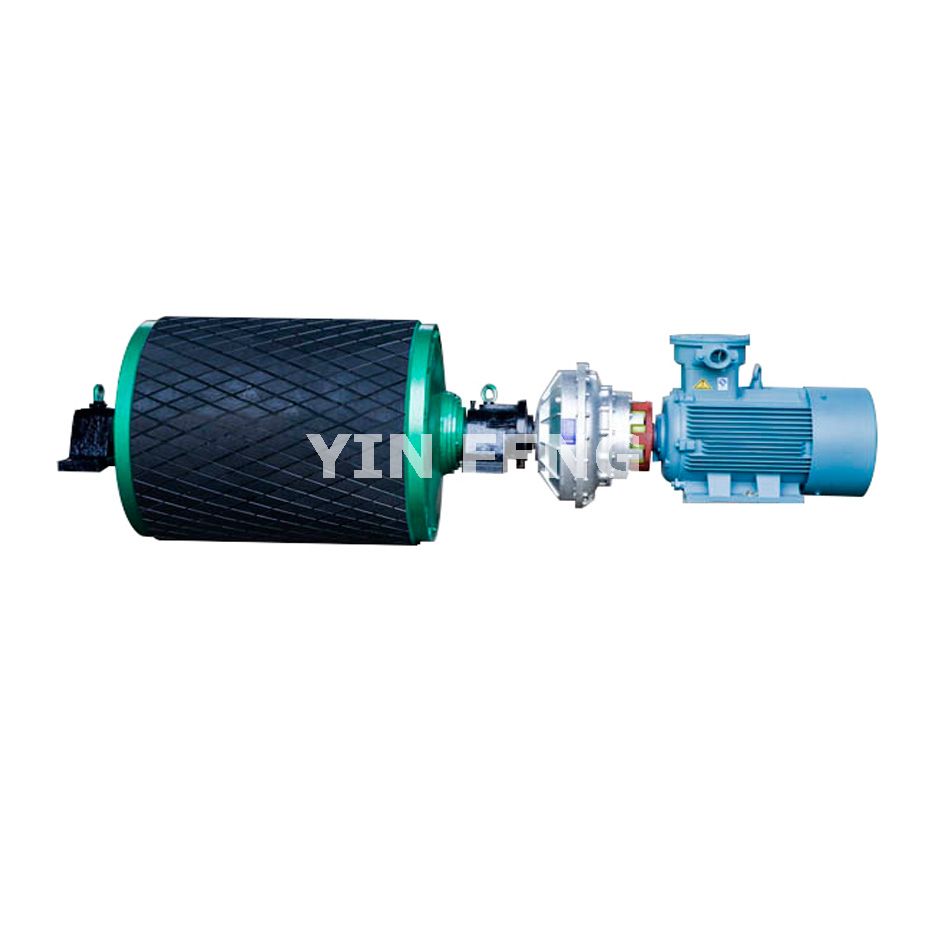

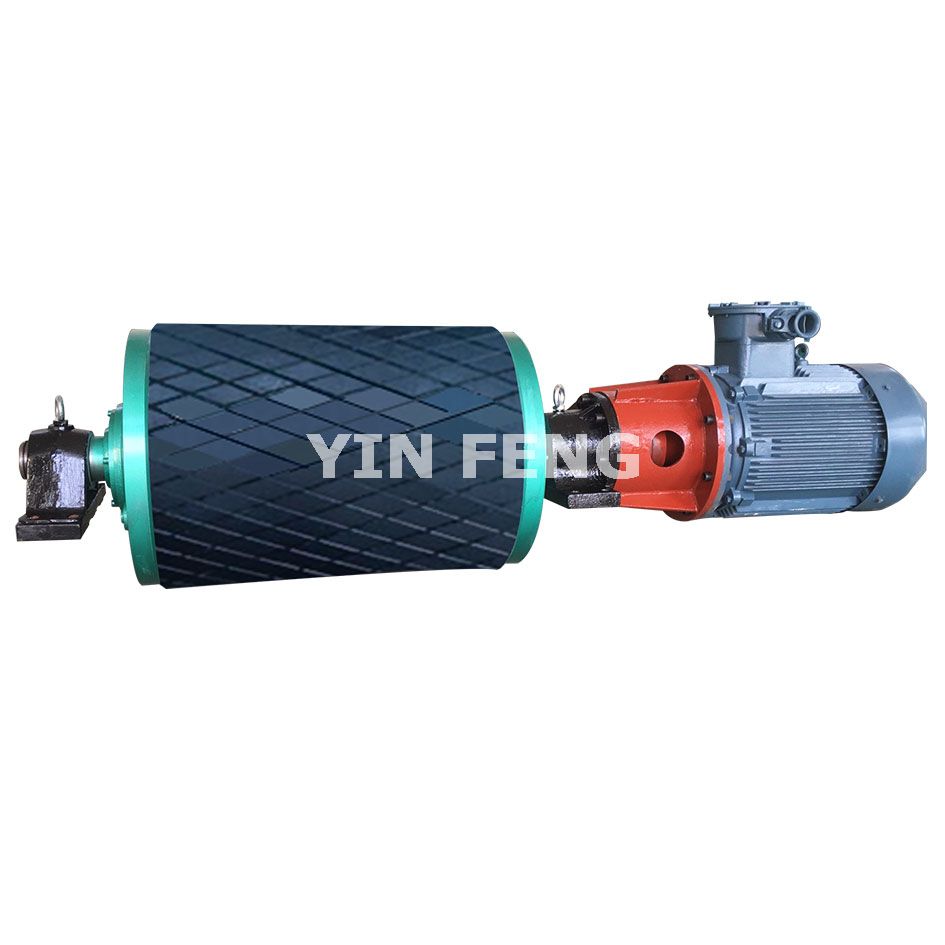

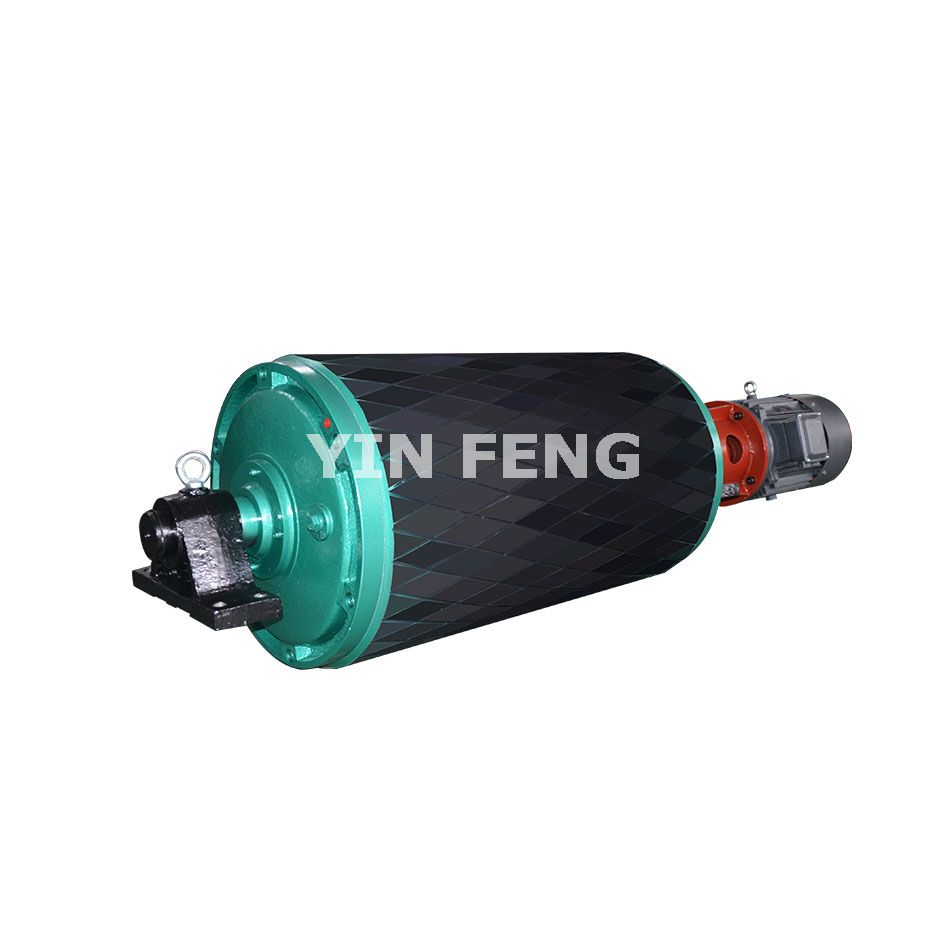

YZW type build-out motorized pulley (motorized drum/drum motor)

Product Introduction

YZW type build-out motorized pulley (motorized drum/drum motor) is a new-type driving device for supportive use of various fixed belt conveyors, bucket elevator and winch the exposed dynamo is directly connected with roller with that merits of convenient maintenance and safe operation. Dynamo external connection changed heat dissipation condition with convenient installation and maintenance.

The advanced in-built reverse stop device guarantees one-way rotation of roller and prevents belt falling during downtime of material conveying.The glue lines in lambdoid and rhombus patterns covered on roller surface can improve the ability of traction adhesive tape.

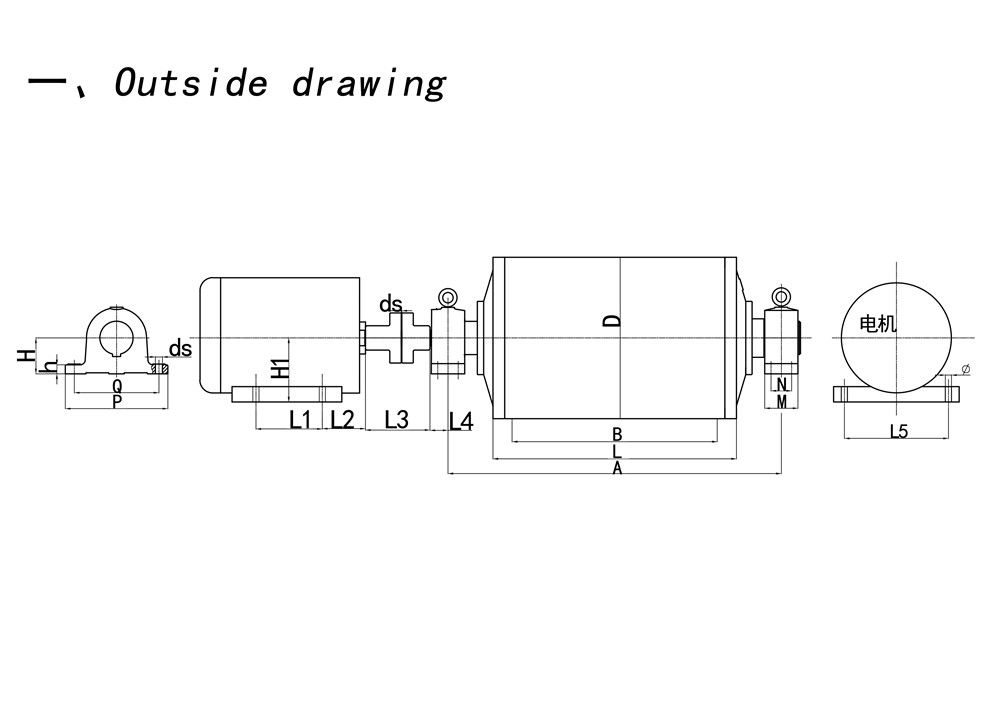

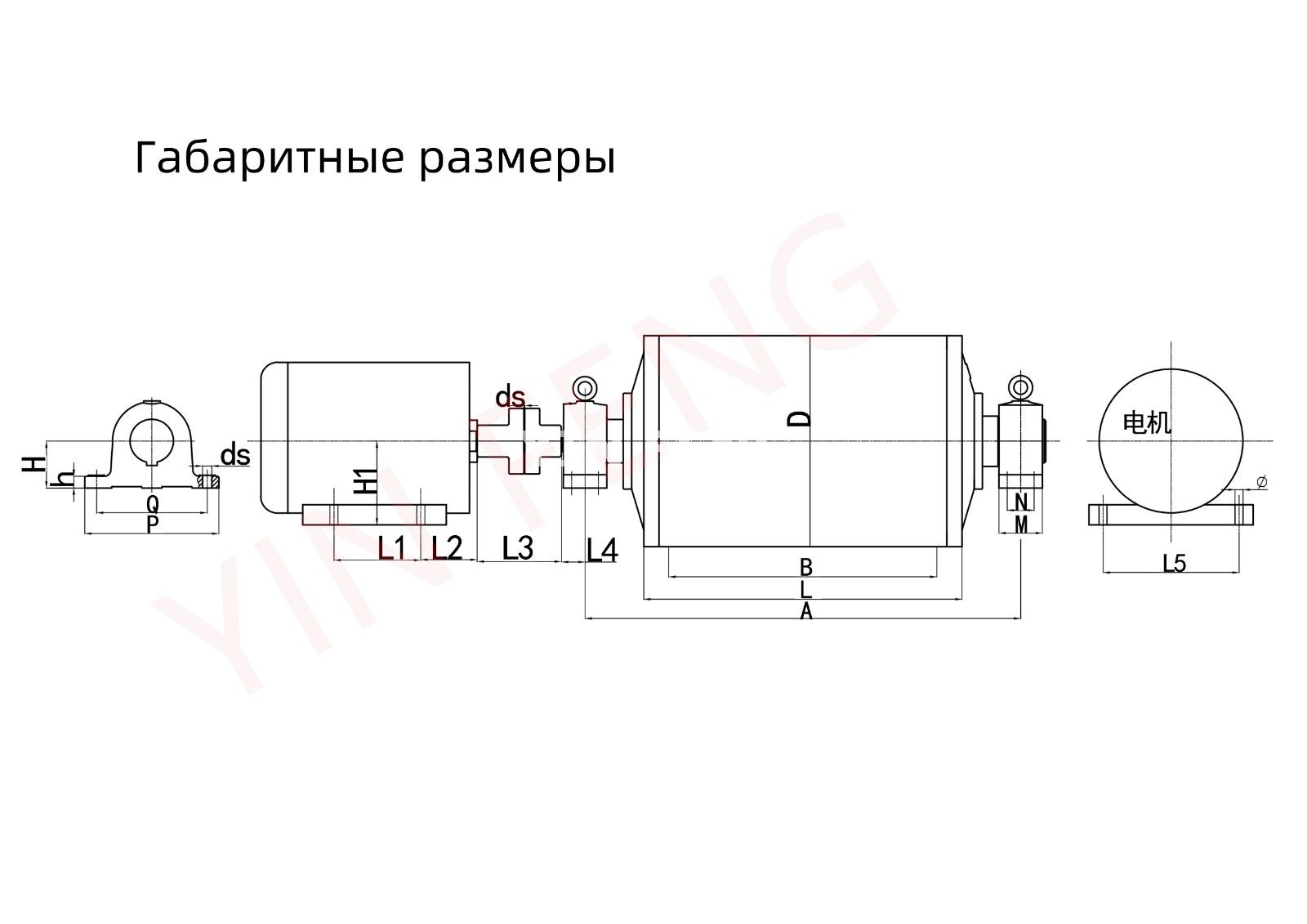

YZW type build-out motorized pulley (motorized drum/drum motor) Outside Drawing

YZW Type Build-out Motorized Drum

YZW type build-out motorized pulley (motorized drum/drum motor)

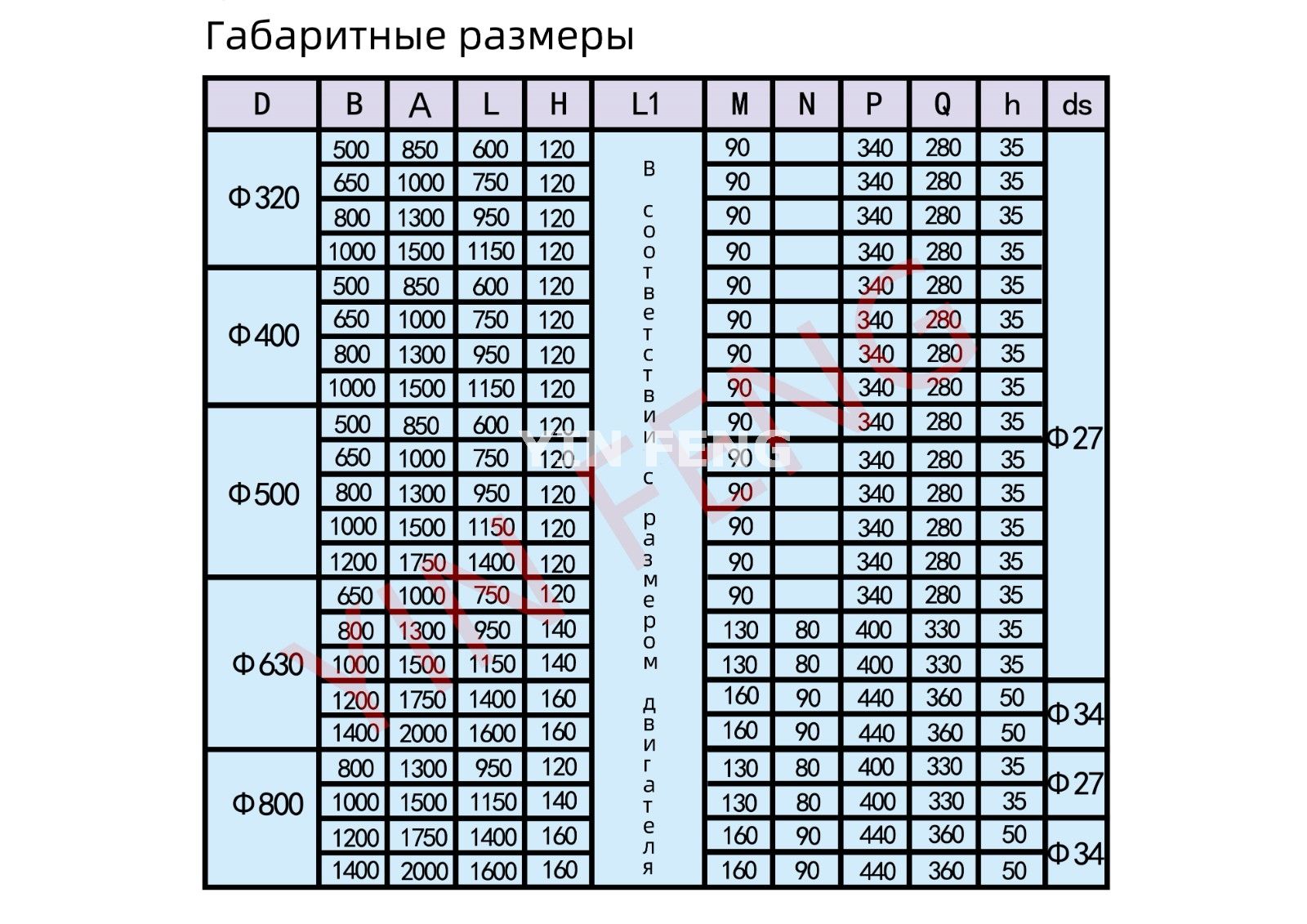

External Dimension

D

B

A

L

H

L1

M

N

P

Q

h

ds





Φ320

500

850

600

120







According to



 The



Motor



size



90


340

280

35



















Φ27

650

1000

750

120

90


340

280

35

800

1300

950

120

90


340

280

35

1000

1500

1150

120

90


340

280

35



Φ400

500

850

600

120

90


340

280

35

650

1000

750

120

90


340

280

35

800

1300

950

120

90


340

280

35

1000

1500

1150

120

90


340

280

35







Φ500

500

850

600

120

90


340

280

35

650

1000

750

120

90


340

280

35

800

1300

950

120

90


340

280

35

1000

1500

1150

120

90


340

280

35

1200

1750

1400

120

90


340

280

35





Φ630

650

1000

750

120

90


340

280

35

800

1300

950

140

130

80

400

330

35

1000

1500

1150

140

130

80

400

330

35

1200

1750

1400

160

160

90

440

360

50

Φ34

1400

2000

1600

160

160

90

440

360

50





Φ800

800

1300

950

120

130

80

400

330

35

Φ27

1000

1500

1150

140

130

80

400

330

35

1200

1750

1400

160

160

90

440

360

50

Φ34

1400

2000

1600

160

160

90

440

360

50

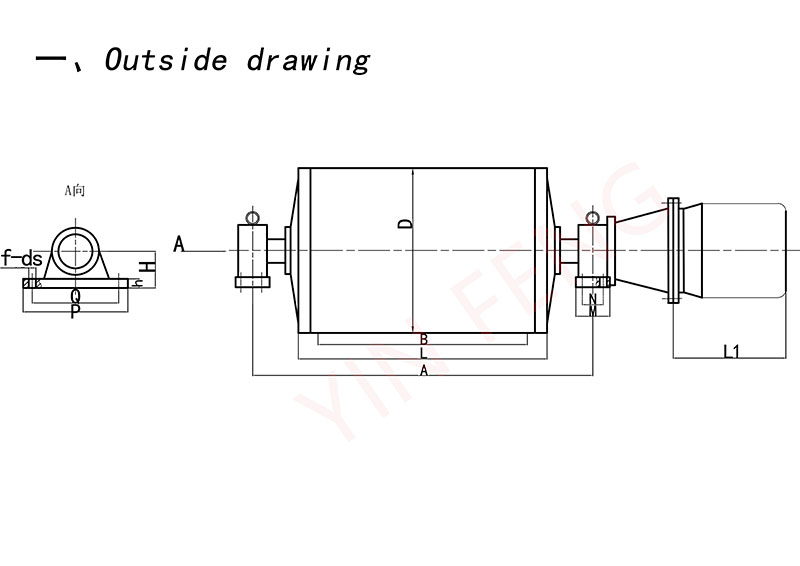

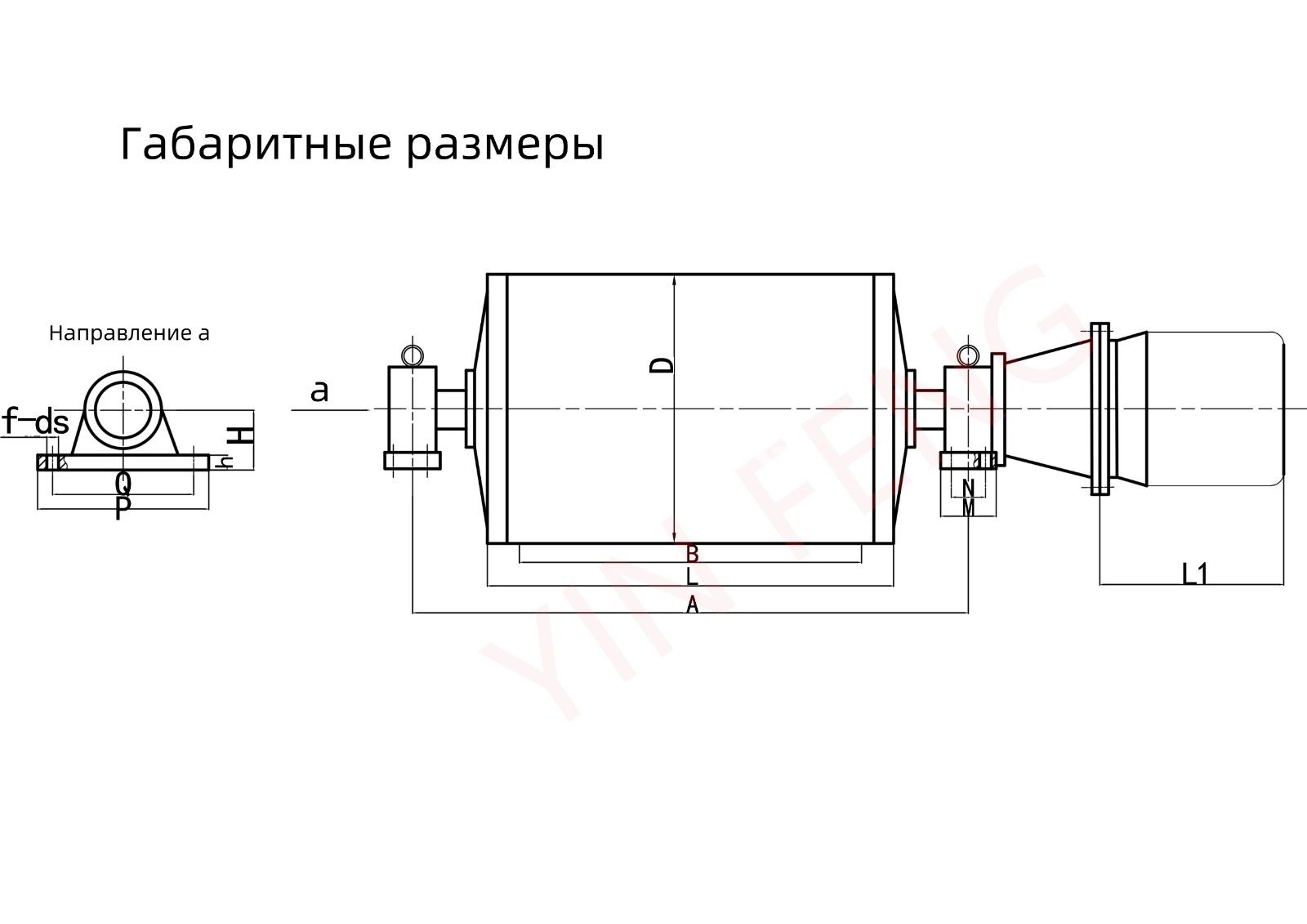

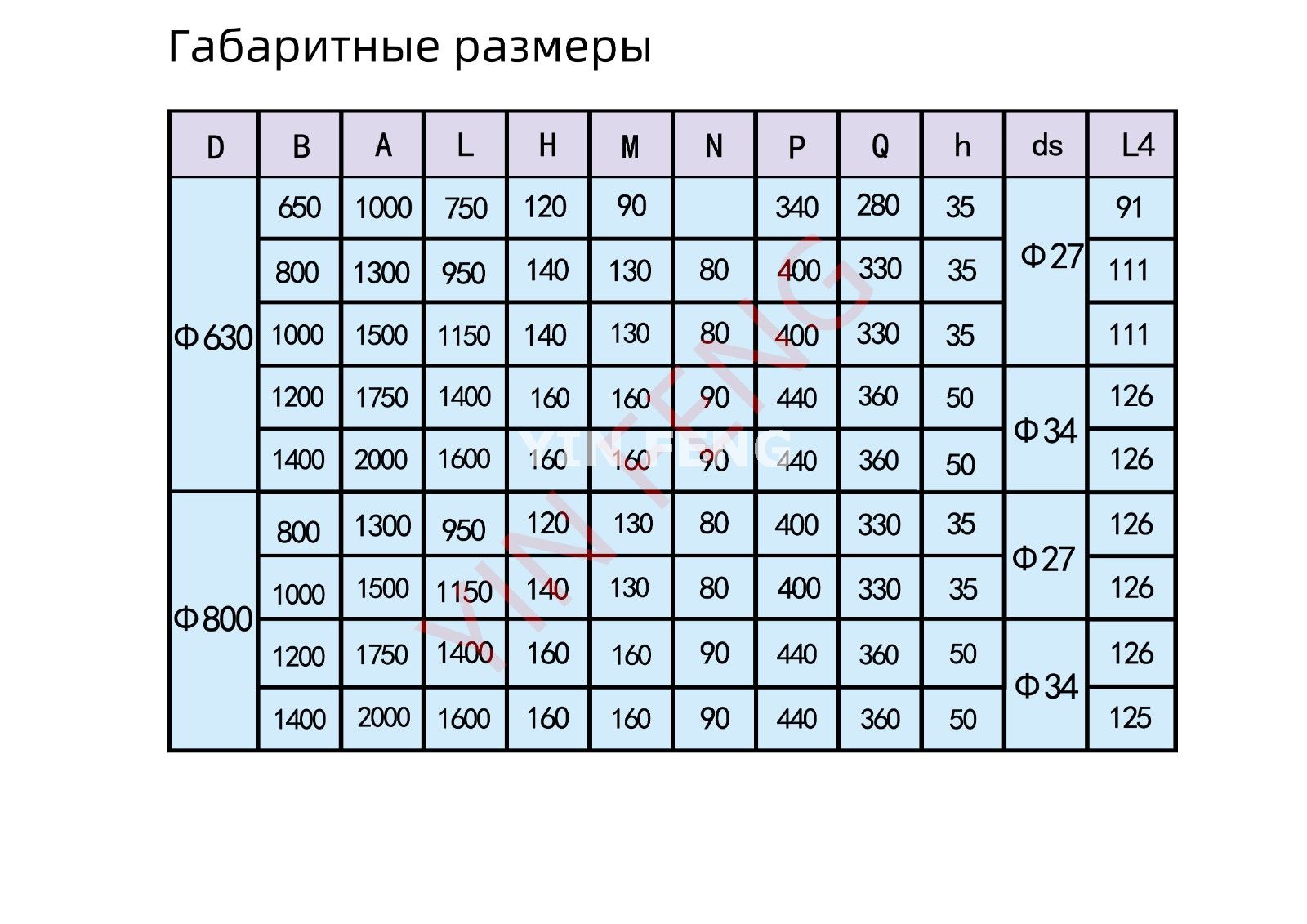

YZW type build-out motorized pulley (motorized drum/drum motor) Outside DrawingYZW Type Build-out Motorized Drum

YZW type build-out motorized pulley (motorized drum/drum motor)

External Dimension

D

B

A

L

H

M

N

P

Q

h

ds

L4





Φ320

500

850

600

120

90


340

280

35



















Φ27


650

1000

750

120

90


340

280

35


800

1300

950

120

90


340

280

35


1000

1500

1150

120

90


340

280

35




Φ400

500

850

600

120

90


340

280

35


650

1000

750

120

90


340

280

35


800

1300

950

120

90


340

280

35


1000

1500

1150

120

90


340

280

35








Φ500

500

850

600

120

90


340

280

35


650

1000

750

120

90


340

280

35


800

1300

950

120

90


340

280

35


1000

1500

1150

120

90


340

280

35


1200

1750

1400

120

90


340

280

35






Φ630

650

1000

750

120

90


340

280

35

91

800

1300

950

140

130

80

400

330

35

111

1000

1500

1150

140

130

80

400

330

35

111

1200

1750

1400

160

160

90

440

360

50

Φ34

126

1400

2000

1600

160

160

90

440

360

50

126





Φ800

800

1300

950

120

130

80

400

330

35

Φ27

126

1000

1500

1150

140

130

80

400

330

35

126

1200

1750

1400

160

160

90

440

360

50

Φ34

126

1400

2000

1600

160

160

90

440

360

50

125

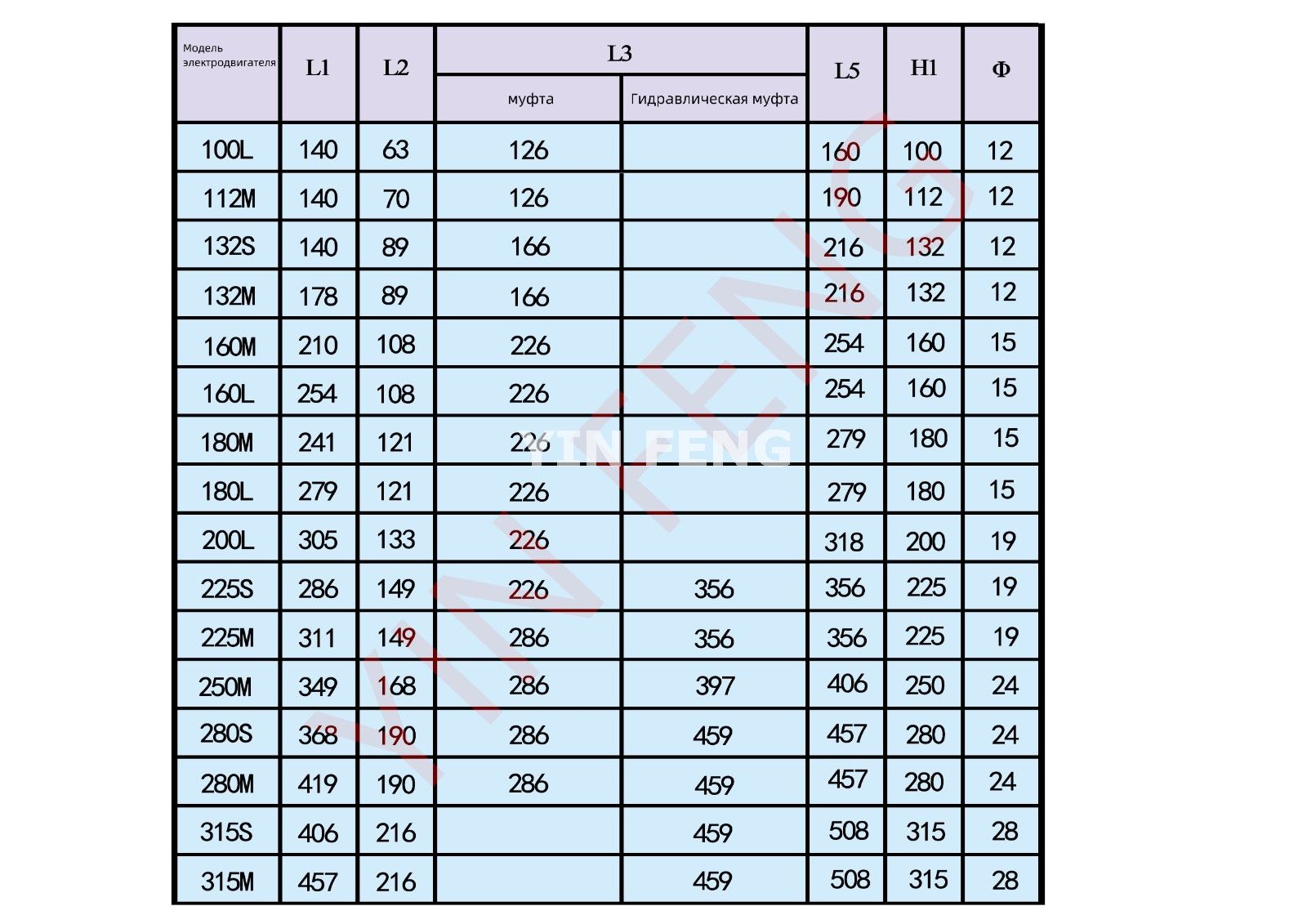

Motor   Type

L1

L2

L3

L5

H1

Φ

Coupling

Fluid   Coupling

100L

140

63

126


160

100

12

112M

140

70

126


190

112

12

132S

140

89

166


216

132

12

132M

178

89

166


216

132

12

160M

210

108

226


254

160

15

160L

254

108

226


254

160

15

180M

241

121

226


279

180

15

180L

279

121

226


279

180

15

200L

305

133

226


318

200

19

225S

286

149

226

356

356

225

19

225M

311

149

286

356

356

225

19

250M

349

168

286

397

406

250

24

280S

368

190

286

459

457

280

24

280M

419

190

286

459

457

280

24

315S

406

216


459

508

315

28

315M

457

216


459

508

315

28




YZW type build-out motorized pulley (motorized drum/drum motor)

Parameter Table


Diameter

mm

Power

KW

Blet Width

mm

Velocity of drum surface(m/s)

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.25

1.6

2.0

2.5

3.15

















Φ320



1.5

500

650

800

1000



2.2

500

650

800

1000



3

500

650

800

1000



4

500

650

800

1000



5.5

500

650

800

1000











Φ400



1.5

500

650

800

1000



2.2

500

650

800

1000



3

500

650

800

1000

4

500

650

800

1000



5.5



500

650

800

1000



Diameter

mm

Power

KW

Blet Width

mm

Velocity of drum surface(m/s)

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.25

1.6

2.0

2.5

3.15

















Φ500















1.5

500

650

800

1000

1200
















2.2

500

650

800

1000

1200
















3

500

650

800

1000

1200
















4

500

650

800

1000

1200
















5.5

500

650

800

1000

1200
















7.5

500

650

800

1000

1200
















11

500

650

800

1000

1200


















15

650

800

1000

1200


















18.5

650

800

1000

1200

22

650

800

1000

1200





































Φ630





5.5

650

800

1000

1200

1400





7.5

650

800

1000

1200

1400





11

650

800

1000

1200

1400





15

650

800

1000

1200

1400





18.5

650

800

1000

1200

1400





22

650

800

1000

1200

1400



30

800

1000

1200

1400



37

800

1000

1200

1400



45

800

1000

1200

1400


Diameter

mm

Power

KW

Blet Width

mm

Velocity of drum surface(m/s)

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.25

1.6

2.0

2.5

3.15



630



55

800

1000

1200

1400







































Φ800



7.5

800

1000

1200

1400



11

800

1000

1200

1400



15

800

1000

1200

1400



18.5

800

1000

1200

1400



22

800

1000

1200

1400



30

800

1000

1200

1400



37

800

1000

1200

1400



45

800

1000

1200

1400



55



800

1000

1200

1400





Introduce of motorized pulley (motorized drum/drum motor)


The motorized pulley(motorized drum/drum motor) produced by our company has three transmission forms of  gear planetary & cycloid gears. With the installation of built-in motor, external motor , we have a total series of TDY75, YZ, YZW, WD, YTH,YD,DY1 and other products. And each series of motorized pulley(motorized drum/drum motor) can be packed with rubber. We have three kinds of rubber surface of flat, herringbone & diamond. The electric drum can also append backstop function. And for built-in motor roller it has oil cooling type & oil-immersed type, for external motor roller it has horizontal in-line type, vertical motor type and horizontal vertical type. the coupling there's flexible pin coupling and hydraulic coupling.

The motorized pulley(motorized drum/drum motor) can be used in dust, humidity, muddy and open-air working sites. It is suitable for ambient temperature from -20 to 40 degree, and can not be used for high-temperature materials and explosive places. The suitable altitudes should be no more than 1000m above sea level. And it should be installed level.

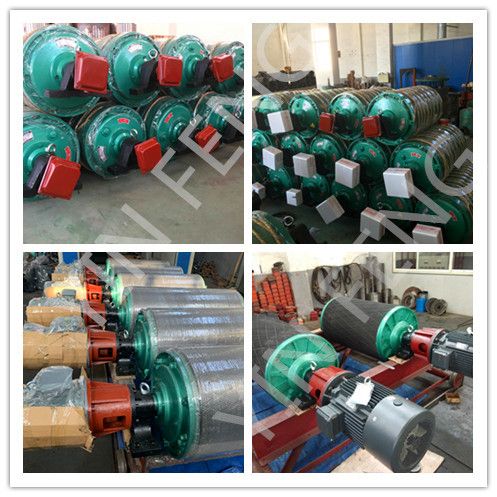

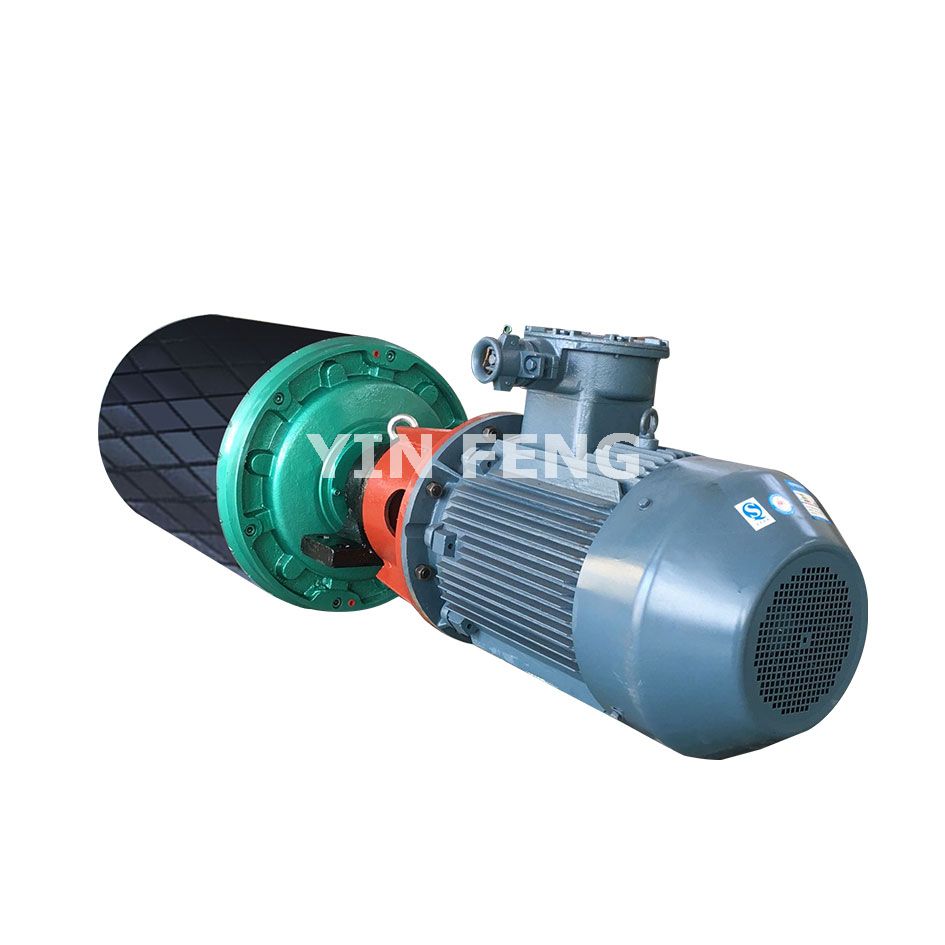

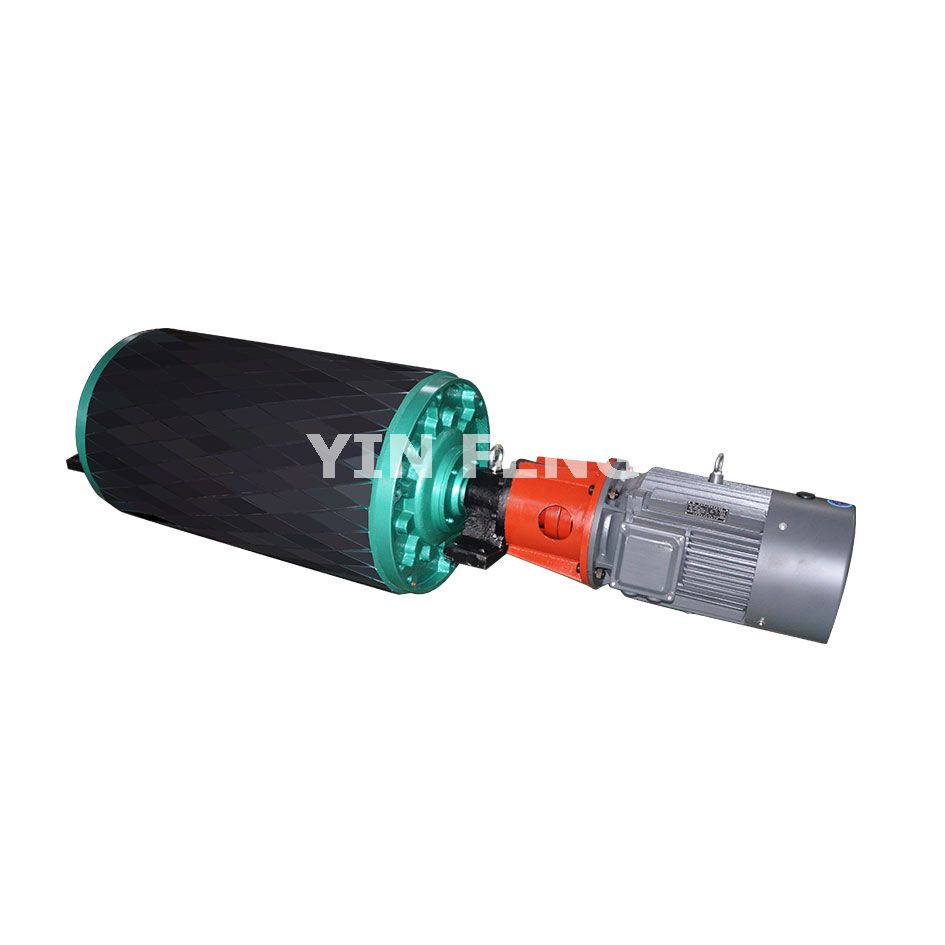

YZW type build-out motorized pulley (motorized drum/drum motor) Photos

YZW Type Build-out Motorized Pulley (Motorized Drum/Drum Motor)

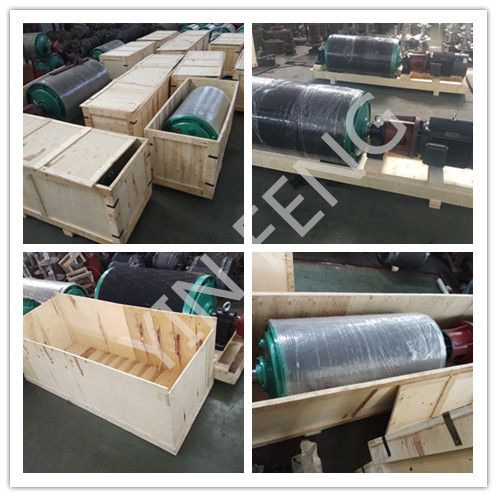

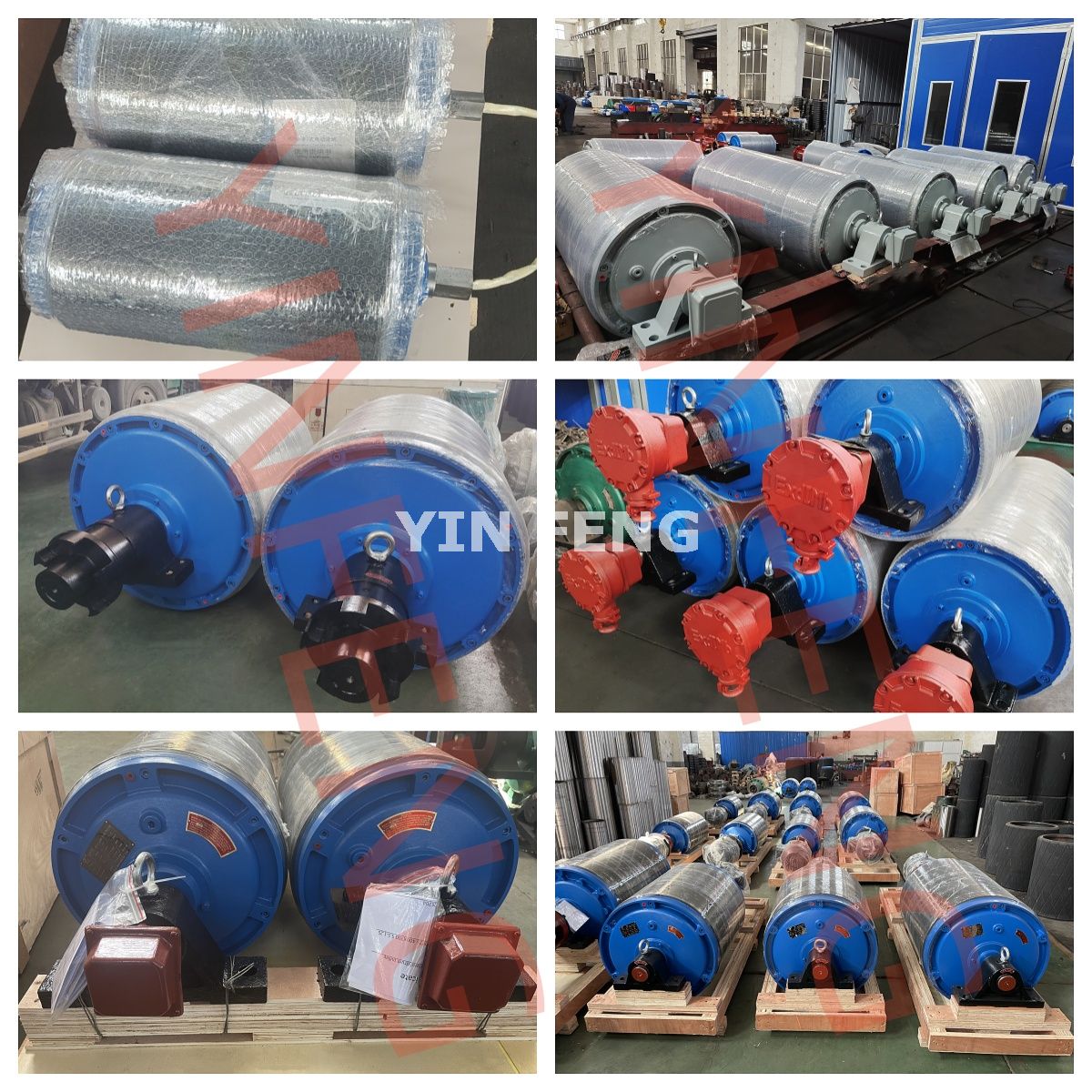

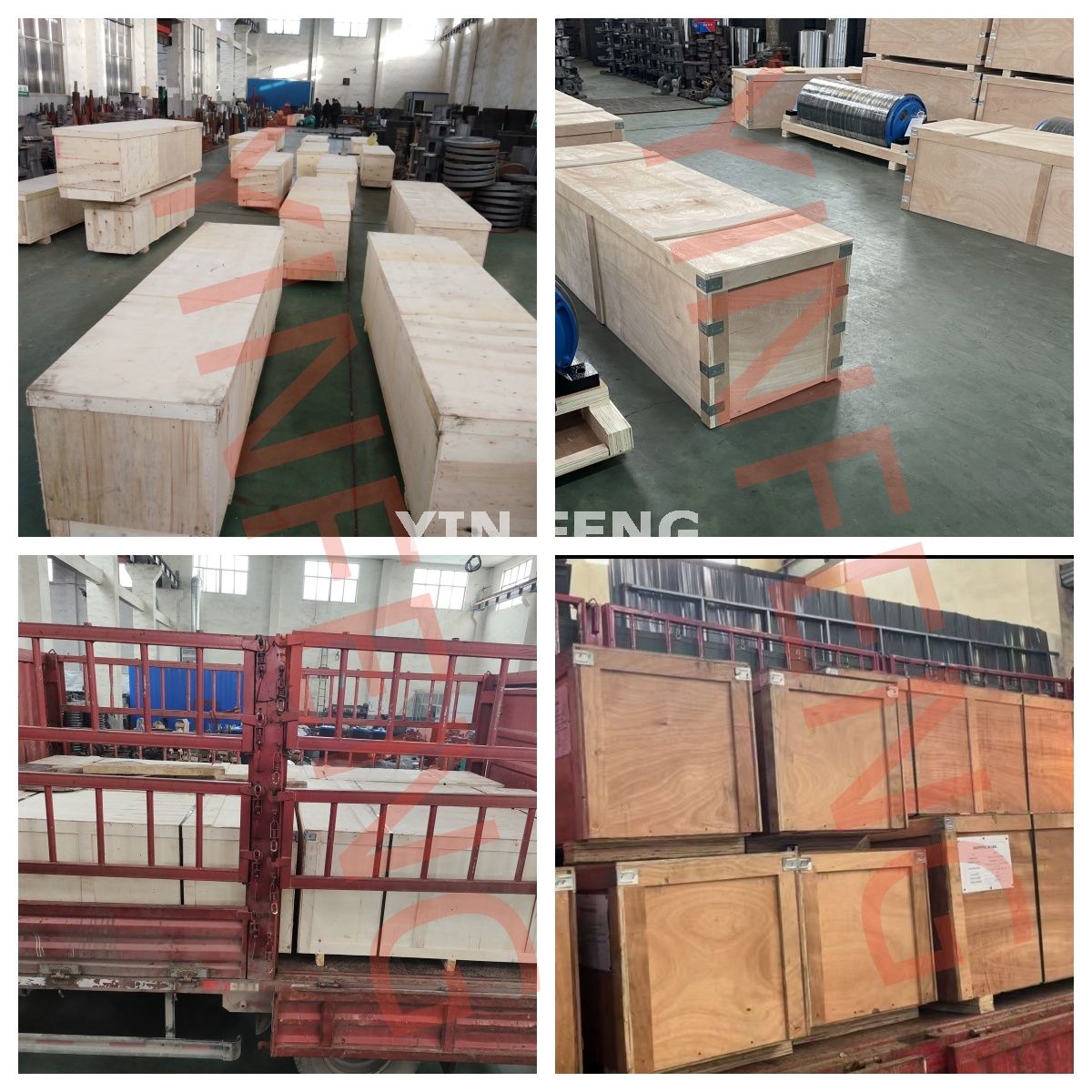

YZW type build-out motorized pulley (motorized drum/drum motor) Packaging
