Погружной шламовый насос ZJQ

ZJQ submersible slurry pump is centrifugal submersible pump especially apply for the working under water together with motor. the submersible slurry pump have advance structure, with a wider flow channel, suitable for transfer liquid contain sand, cinder, tailings and other solid particles, widely used in metallurgical, mining, power plants and other enterprises for transfer slurry mud and similar liquid,it is the ideal alternative to the traditional mud pump.

Запросить сейчас Нет

Информация о продукте

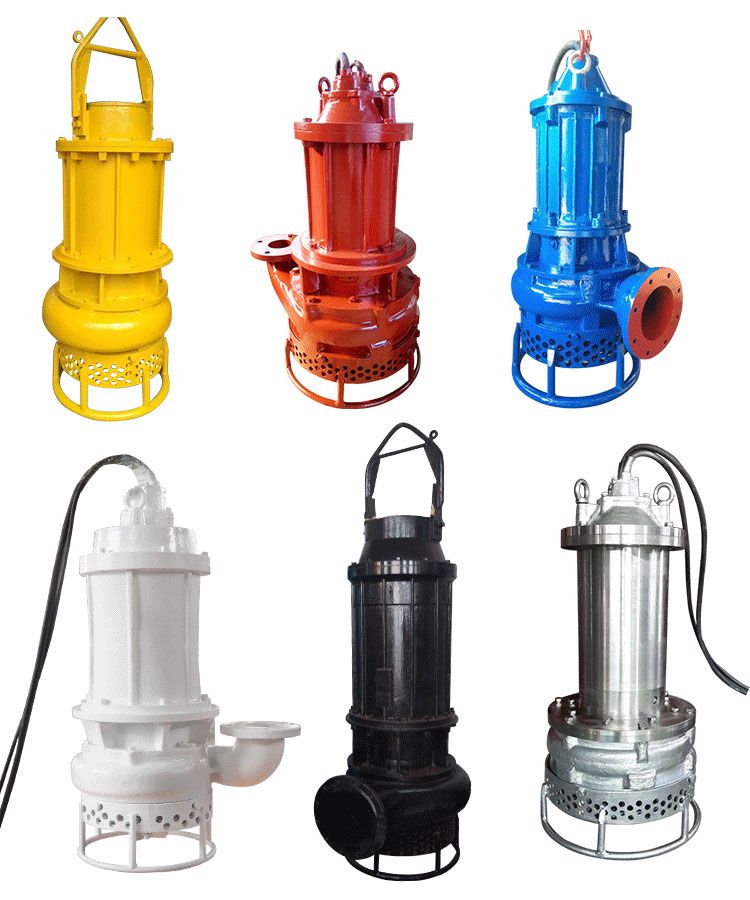

ZJQ submersible slurry pump product profile

ZJQ submersible slurry pump is the hydraulicmachinery with coaxial motor and waterpump and submerged in the medium for work.The equipment has advanced structure， wide flow channel， strong discharge capacity， excellent material selection and strong corrosion resistance.It is suitable for conveying the liquid with sandstone， coal cinder， tailings and other solid particles.It is mainly used for cleaning and conveying of the slurry liquid of metallurgy，mine， iron and steelworks， thermal powerplant and other enterprises， and is the ideal substitute product of the traditional slurry pump.

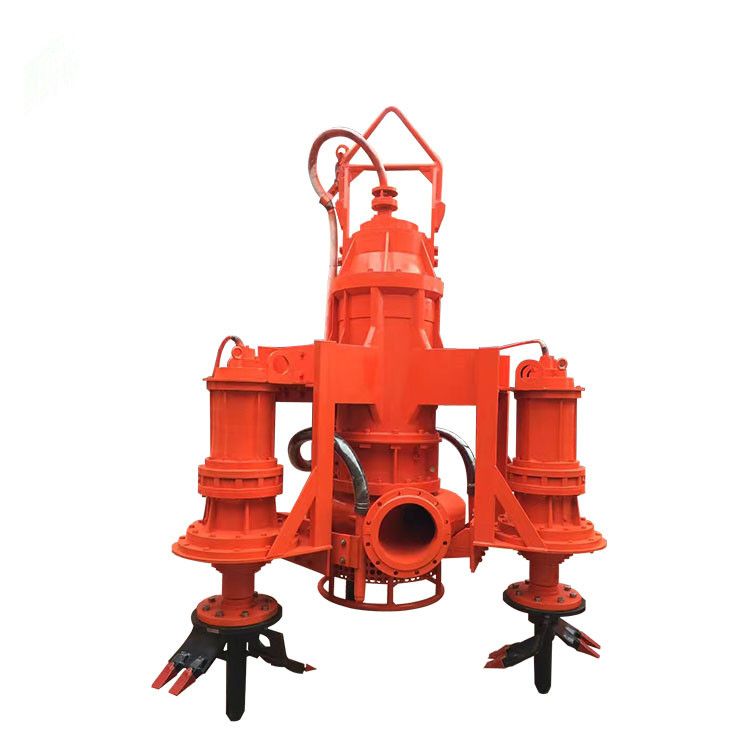

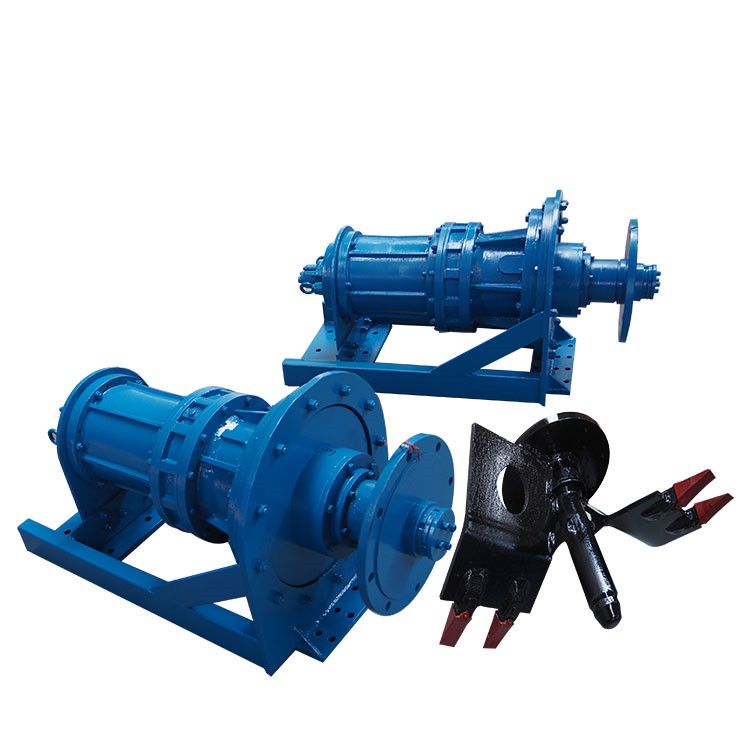

The series products are designed and manufactured by absorbing the foreign advanced technology.The wear-resistant material with high technology is adopted， so as to greatly improve the equipment life， and reduce the repair frequency.A set of mixing impeller is added at the bottom at.the waterpump except for the primary impeller， which can spray the sediment sludge to eddy flow， so that high concentration convey can be realized when the waterpump has no auxiliary device.The unique sealing device can effectively balance the pressure inside and outside the oil chamber.

so that pressure at both ends of mechanical seal is maintained balanced.It guarantees operation reliability of mechanical seal to the maximum limit， and greatly extends the service life.If necessary， overheat protection， inlet water detection and protection and other protection measures shall be adopted for the motor， which can be in long-term safe operation at harsh conditions. Meanwhile， the company can also add anti-condensation， bearing temperature measurement and other preventive measures can also be added according to users'requirements， so as to satisfy use in different occasions.

ZJQ submersible slurry pump is favored by the majority of users since entering the domestic market.

ZJQ submersible slurry pump main characteristics

Compared with the common slurry pump， the series products have the following features:

1、It's not restricted by suction li， the slag suction e ficiency is high， and dredging is more thorough.

2、It is not required to equip the auxiliary vacuum pump， and the investment is more inexpensive.

3、It is not required to equip the aux ii ary mixing device， and operation is simpler.

4、It is not required to buid the compli ated ground protect on and fing device when the motor is inserted underwater， which is simple and convenient.

5、The mixing impel er directly contacts the deposi on surface， and the depth is conrol ed through the submerged depth.Therefore， concentration control is more free.

6、The equipment idiectyinseredn to water for work， there is no no ie or v brain， and the sie is more tidy.

ZJQ submersible slurry pump use conditions

1、The powersupply is50Hz，380V,400V three-phase AC supply.

2、The medium temperature shall not be higher than 60℃， and the medium shall not include the combustible and explosive gas.

3、The maximum weight concentration of solid particle in the medium is 30%， and the maximum medium density is 1.2kg/L.

4、The maximum diving depth of the unit can generally reach 20-150 meters.The minimum diving depth is based on the submerged motor.

5、The unit shall operate in a vertical way in the medium at best， and the operation mode is continuous operation.

6、When the site conditions do not conform to the above provisions， please indicate it during order.It can be customized according to requirements.

Table of ZJQ submersible slurry pump performance parameters

SerialNo.	Model	Outletdiameter(mm)	Flow(m³/h)	Lift(m)	Motor power(kw)	Rotating speed（r/min）	Maximumgranularity ofinterrupted passing(mm)	Weight(kg)
1	ZJQ30-10-3	65	30	10	3	1460	10	122
2	ZJQ25-12-3	65	25	12	3	1460	10	100
3	ZJQ25-20-4	65	25	20	4	1460	10	122
4	ZJQ45-15-5.5	80	45	15	5.5	1460	13	204
5	ZJQ50-10-5.5	80	50	10	5.5	1460	13	204
6	ZJQ25-30-7.5	80	25	30	7.5	1460	13	208
7	ZJQ30-30-7.5	80	30	30	7.5	1460	13	208
8	ZJQ32-20-7.5	80	32	20	7.5	1460	13	208
9	ZJQ45-15-7.5	80	45	15	7.5	1460	13	208
10	ZJQ100-10-7.5	100	100	10	7.5	1460	21	208
11	ZJQ40-25-11	80	40	25	11	1460	13	244
12	ZJQ50-21-11	80	50	21	11	1460	13	244
13	ZJQ70-20-11	80	70	20	11	1460	13	244
14	ZJQ100-16-11	100	100	16	11	1460	21	244
15	ZJQ25-40-15	80	25	40	15	1460	13	280
16	ZJQ50-26-15	80	50	26	15	1460	13	280
17	ZJQ50-28-15	80	50	28	15	1460	13	280
18	ZJQ60-30-15	100	60	30	15	1460	13	280
19	ZJQ70-24-15	100	70	24	15	1460	13	280
20	ZJQ75-25-15	100	75	25	15	1460	13	280
21	ZJQ100-18-15	100	100	18	15	1460	21	280
22	ZJQ150-15-15	100	150	15	15	1460	21	280
23	ZJQ150-18-18.5	150	150	18	18.5	980	32	550
24	ZJQ200-12-18.5	100	200	12	18.5	980	45	550
25	ZJQ100-25-22	100	100	25	22	980	32	580
26	ZJQ100-30-22	150	100	30	22	980	32	580
27	ZJQ150-22-22	150	150	22	22	980	32	580
28	ZJQ200-15-22	150	200	15	22	980	45	580
29	ZJQ300-10-22	200	300	10	22	980	28	617
30	ZJQ70-38-30	100	60	46	30	980	21	550
31	ZJQ70-38-30	100	70	38	30	980	21	550
32	ZJQ75-45-30	100	75	45	30	980	21	550
33	ZJQ100-35-30	150	100	35	30	980	21	550
34	ZJQ108-30-30	150	108	30	30	980	21	550
35	ZJQ150-30-30	150	150	30	30	980	21	550
36	ZJQ200-25-30	150	200	25	30	980	21	550
37	ZJQ250-20-30	150	250	20	30	980	21	550
38	ZJQ300-15-30	200	300	15	30	980	28	700

Serial	Model	Outletdiameter(mm)	Flow(m³/h)	Lift(m)	Motor power(KW)	Rotating speed（r/min）	Maximumgranularity ofinterrupted passing(mm)	Weight(kg)
39	ZJQ100-50-37	100/150	100	50	37	980	21	918
40	ZJQ300-20-37	200	300	20	37	980	28	850
41	ZJQ400-15-27	200	400	15	37	980	28	850
42	ZJQ100-60-45	150	100	60	45	980	21	950
43	ZJQ150-35-45	150	150	35	45	980	36	1000
44	ZJQ200-30-45	150	200	30	45	980	36	1000
45	ZJQ500-15-45	250	500	15	45	980	46	1100
46	ZJQ150-45-55	150	150	45	55	980	21	1140
47	ZJQ250-35-55	150	250	35	55	980	36	1140
48	ZJQ600-15-75	250	600	15	75	980	46	1186
49	ZJQ200-45-75	150	200	45	75	980	14	1540
50	ZJQ350-35-75	200	350	35	75	980	28	1550
51	ZJQ400-25-75	200	400	25	75	980	25	1550
52	ZJQ500-20-75	200	500	20	75	980	25	1550
53	ZJQ200-50-75	150	200	50	75	980	14	1500
54	ZJQ200-60-90	150	200	60	90	980	14	1550
55	ZJQ400-40-90	200	400	40	90	980	28	1550
56	ZJQ500-25-90	200	500	25	90	980	25	1550
57	ZJQ400-50-110	200	400	50	110	980	28	1970
58	ZJQ500-54-110	200	500	54	110	980	28	1970
59	ZJQ600-30-110	200	600	30	110	980	28	1970
60	ZJQ780-26-110	300	780	26	110	980	50	1970
61	ZJQ1000-18-110	300	1000	18	110	980	50	1986
62	ZJQ400-60-132	200	400	60	132	980	28	2000
63	ZJQ500-45-132	200	500	45	132	980	28	2000
64	ZJQ500-55-132	200	500	55	132	980	28	2000
65	ZJQ800-35-132	300	800	35	132	980	42	2000
66	ZJQ1000-22-132	300	1000	22	132	980	50	2000
67	ZJQ650-52-160	200	650	52	160	980	28	2650
68	ZJQ1000-30-160	300	1000	30	160	980	42	2300
69	ZJQ780-50-185	300	780	50	185	980	38	3330
70	ZJQ600-55-200	250	600	55	200	980	28	3400
71	ZJQ800-45-200	300	800	45	200	980	42	3400
72	ZJQ1000-40-200	300	1000	40	200	980	42	3400
73	ZJQ1500-20-200	350	1500	20	200	980	56	3400
74	ZJQ2000-20-200	400	2000	20	200	980	56	3400
75	ZJQ800-55-220	300	800	55	220	980	38	3400
76	ZJQ1250-35-220	350	1250	35	220	980	45	3400

Serial	Model	Outletdiameter(mm)	Flow(m³/h)	Lift(m)	Motor power(KW)	Rotating speed（r/min）	Maximumgranularity ofinterrupted passing(mm)	Weight(kg)
77	ZJQ1750-30-250	350	1750	30	250	980	55	3500
78	ZJQ1500-35-250	350	1500	35	250	980	50	3500
79	ZJQ2000-35-315	400	2000	35	315	980	60	4000
80	ZJQ25-20-4(K)	65	25	20	4	1460	10	122
81	ZJQ30-16-4(K)	65	30	16	4	1460	10	122
82	ZJQ50-10-5.5(K)	80	50	10	5.5	1460	13	140
83	ZJQ25-30-7.5(K)	80	25	30	7.5	1460	13	150
84	ZJQ30-30-7.5(K)	80	30	30	7.5	1460	13	150
85	ZJQ32-20-7.5(K)	80	32	20	7.5	1460	13	150
86	ZJQ45-15-7.5(K)	80	45	15	7.5	1460	13	150
87	ZJQ100-10-7.5(K)	100	100	10	7.5	1460	21	165
88	ZJQ40-25-11(K)	80	40	25	11	1460	13	180
89	ZJQ50-21-11(K)	80	50	21	11	1460	13	180
90	ZJQ50-26-11(K)	80	50	26	11	1460	13	180
91	ZJQ70-20-11(K)	80	70	20	11	1460	13	180
92	ZJQ100-18-11(K)	100	100	18	11	1460	21	217
93	ZJQ25-40-15(K)	80	25	40	15	1460	13	230
94	ZJQ50-26-15(K)	80	50	26	15	1460	13	200
95	ZJQ50-28-15(K)	80	50	28	15	1460	13	200
96	ZJQ60-30-15(K)	100	60	30	15	1460	13	220
97	ZJQ70-24-15(K)	100	70	24	15	1460	13	220
98	ZJQ75-25-15(K)	100	75	25	15	1460	13	220
99	ZJQ100-18-15(K)	100	100	18	15	1460	13	220
100	ZJQ50-50-22(K)	65	50	50	22	1460	13	420
101	ZJQ100-30-22(K)	100	100	30	22	1460	13	420
102	ZJQ60-60-37(K)	80	60	60	37	1460	17	670
103	ZJQ160-30-37(K)	100	160	30	37	1460	21	740
104	ZJQ400-25-45(K)	150	400	25	45	1460	35	880
105	ZJQ160-38-45(K)	100	160	38	45	1460	21	880
105	ZJQ120-60-55(K)	80	120	60	55	1460	21	960
107	ZJQ250-35-55(K)	150	250	35	55	1460	25	960
108	ZJQ150-60-75	150	150	60	75	1460	32	1125
109	ZJQ250-45-75	150	250	45	75	1460	32	1125
110	ZJQ450-25-75	200	450	25	75	1460	28	1125
111	ZJQ150-50-75	150	150	50	75	1460	32	1125
112	ZJQ150-75-75	150	150	75	75	1460	32	1125
113	ZJQ460-35-90(K)	200	460	35	90	1460	40	1160
114	ZJQ150-80-90	150	150	80	90	1460	21	1160

Serial	Model	Outletdiameter(mm)	Flow(m³/h)	Lift(m)	Motor power(KW)	Rotating speed（r/min）	Maximumgranularity ofinterrupted passing(mm)	Weight(kg)
115	ZJQ160-70-90	150	160	70	90	1460	21	1160
116	ZJQ250-60-90	150	250	60	90	1460	21	1160
117	ZJQ300-45-90	150	300	45	90	1460	21	1160
118	ZJQ450-30-90	200	450	30	90	1460	28	1160
119	ZJQ100-110-110	150	100	110	110	1460	21	1160
120	ZJQ450-45-110	200	450	45	110	1460	28	1450
121	ZJQ600-30-110	200	600	30	110	1460	28	1450
122	ZJQ150-120-132	200	150	120	132	1460	36	1500
123	ZJQ250-70-132	150	250	70	132	1460	36	1500
124	ZJQ300-65-132	150	300	65	132	1460	36	1500
125	ZJQ700-30-132	250	700	30	132	1460	46	1500
126	ZJQ200-90-132	150	200	90	132	1460	21	1500
127	ZJQ900-30-160	250	900	30	160	1460	46	1880
128	ZJQ400-80-160	150	400	80	160	1460	36	1880
129	ZJQ300-80-160	150	300	80	160	1460	36	1850
130	ZJQ500-80-220	200	500	80	220	1460	28	2650
