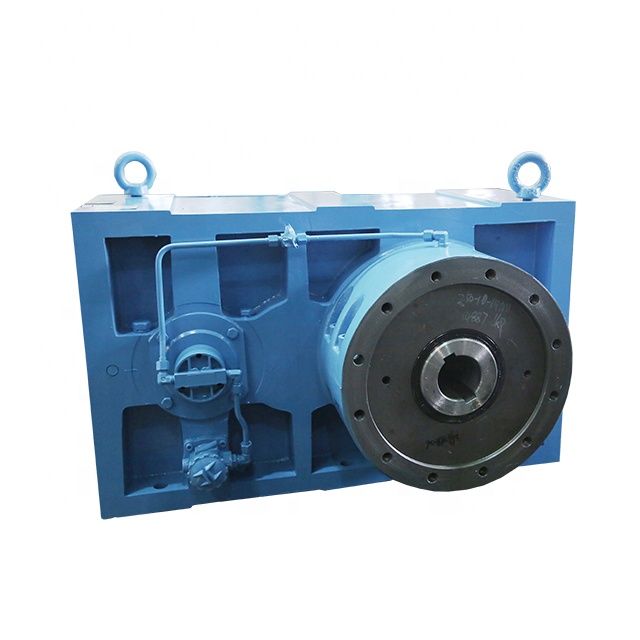

ZLYJ Reducer(Gearbox) For Extruder

    ZLYJ series gearbox is a drive device with high-precision and hard tooth surface and thrust bearing designed to match with plastic/rubber single screw extruders.The gears are manufactured by way of carburizing & quenching hardening, and CNC gear grinding.

ZLYJ Reducer(Gearbox) For Extruder Product Description

ZLYJ series reducer is for plastics twin-screw extruder supporting design precision hard-toothed surface with thrust block transmission parts, product design USES a JB/T8853-2001 stipulated in the various technical and scope, its characteristic is gear and axial parts used high strength steel material, gear by carburizing, quenching and gear grinding process for GB10095 - precision, gear tooth surface hardness 88,6 level, HRC54-62, in hollow output shaft front configuration has super specifications of thrust bearing, and inherit screw work kicks back, bearing and oil seal and other major domestic high-quality product standard parts all USES, can also according to customer need, equipped with imported products. Etc. Characteristics. Product performance has reached the advanced international level, can replace imported products use same type.



Applicable scope

1, high-speed pivot is not more than 1,500 R.P.M..

2, gear transmission circumference speed is not more than 20 meters per second.

3, working environment temperature of 40-45 degrees below zero Celsius, if, before starting the lubricating oil should be preheated to 0 degrees Celsius above, this deceleration machine can be used in the negative direction operation, but some of the type high speed shaft one-way pump, the default direction for: in the face of output shaft, the output shaft for clockwise. Such as direction change, please when ordering.

ZLYJ Reducer(Gearbox) For Extruder Outline Size and Installation


ZLYJ Series
Models
Ratio
Center Height
Output Bore Dia.(H8)
Input Shaft Dia.(m6)
ZLYJ112
6.3~20
130mm
Φ35
Φ28
ZLYJ133
6.3~20
140mm
Φ38
Φ28
ZLYJ146
6.3~20
160mm
Φ45
Φ32
ZLYJ173
6.3~20
170mm
Φ50
Φ38
ZLYJ200
6.3~20
240mm
Φ60
Φ45
ZLYJ225
6.3~20
250mm
Φ70
Φ55
ZLYJ250
6.3~20
280mm
Φ80
Φ60
ZLYJ280
6.3~20
300mm
Φ90
Φ65
ZLYJ315
6.3~20
350mm
Φ100
Φ75
ZLYJ330
6.3~20
350mm
Φ110
Φ85
ZLYJ375
6.3~20
400mm
Φ110
Φ85
ZLYJ420
6.3~20
460mm
Φ120
Φ95
ZLYJ450
6.3~20
500mm
Φ170
Φ100
ZLYJ630
6.3~20
630mm
Φ180
Φ120

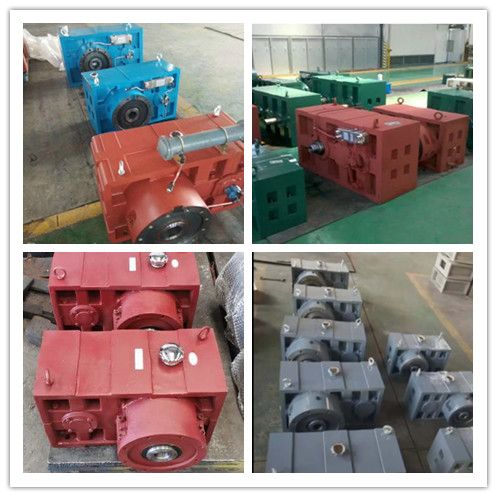

ZLYJ Reducer(Gearbox)  Display

ZLYJ Reducer(Gearbox) For Extruder

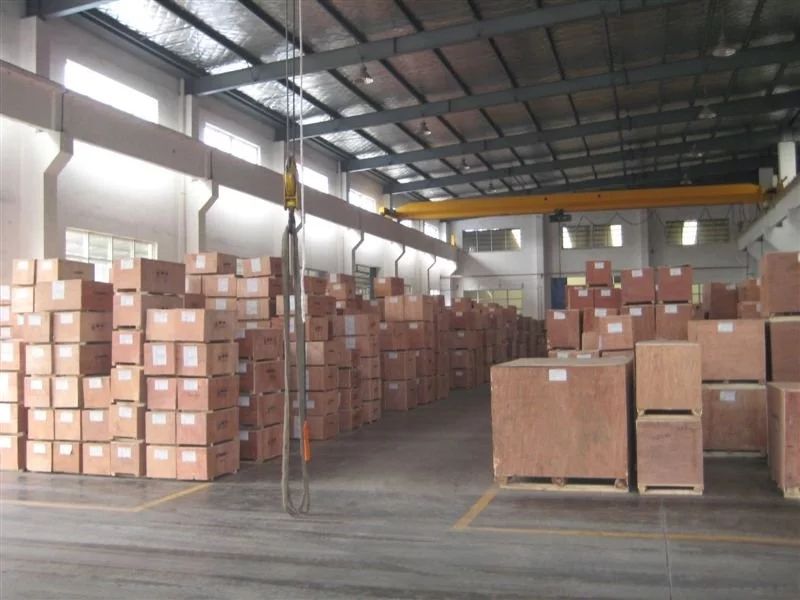

ZLYJ Reducer(Gearbox)  Packaging

ZLYJ Reducer(Gearbox) For Extruder
