shaft is a cylindrical object that passes through the middle of a bearing, wheel or gear, but a few of them are square. shaft is a mechanical part supporting a rotating part and rotating with it to transmit motion, torque or bending moment. Generally, it is in the shape of metal rod, and each section can have different diameters. The rotating parts of the machine are installed on the shaft.
Material
Carbon Steel
SAE1020, SAE1045, Cr12, 40Cr,
Alloy Steel
20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5etc
Brass/Bronze
HPb59-1, H70, CuZn39Pb2, CuZn40Pb2, C38000, CuZn40etc
Outer Diameter
Based on drawing
Length Dimension
Based on drawing
Machining Process
Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping
Teeth Accuracy
DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0
Modules
1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5....8.0 etc
Heat Treatment
Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding
Surface Treatment
Blacking, Polishing, Anodization, Chrome Plating, Zinc Plating, Nickel Plating

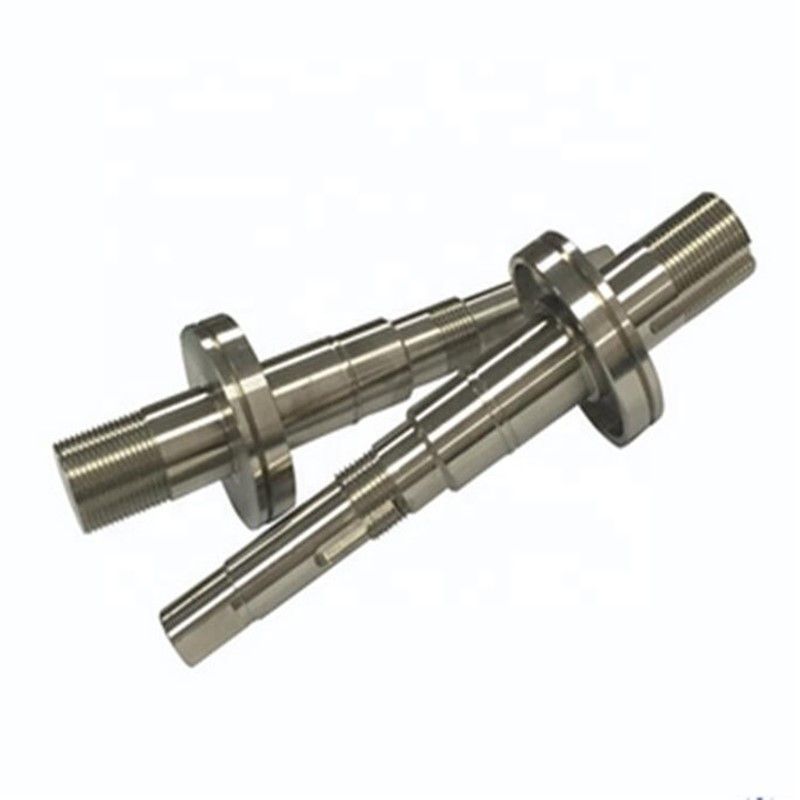

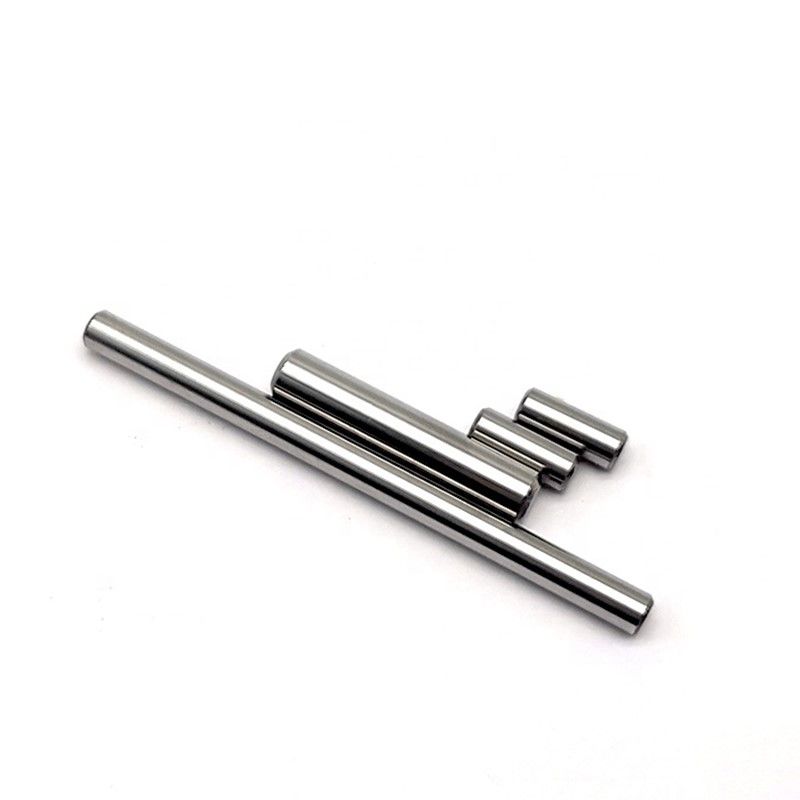

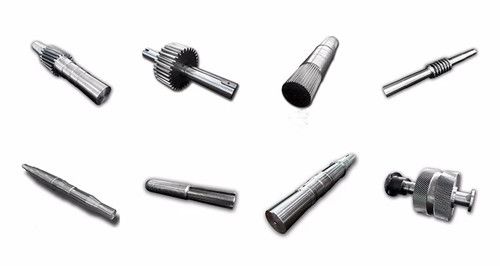

Shaft Photos

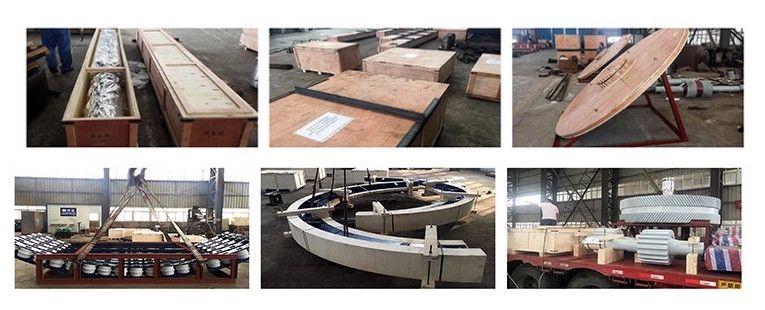

Shaft Packaging
